Examples of REST API Operations using POSTMAN Client
This section shows few examples of REST API operations on DS Package Installer.
Basic Authentication for Requests
Basic authentication parameters are passed such as username and password. You need to specify the same parameter values as defined in the application server level for the TAFJAdmin user having privileges to access the /DSPackageInstaller root URL. These credentials will be used by all requests.
/REST API to Interact with_1.png)
Check Staging Area Status
You need to initiate a GET request to the root /resources/staging resource.
/REST API to Interact with_2.png)
curl --request GET \ --url http://localhost:8080/DSPackageInstaller/resources/staging \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 9596b48f-3a0f-c1f7-3cb1-f8f149511274'
If staging area doesn’t exist, then status nok is returned with missing tables list.
/REST API to Interact with_3.png)
If it exists, then status ok is returned with existing tables making the staging area.
/REST API to Interact with_4.png)
Drop the Staging Area
You need to initiate the DELETE request to /resources/staging.
/REST API to Interact with_5.png)
curl --request DELETE \ --url http://localhost:8080/DSPackageInstaller/resources/staging \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 63e05ff6-b791-dc13-61ed-41dfe2905b7e' \
If staging area exists and is successfully dropped, then status ok is returned.
/REST API to Interact with_6.png)
If staging area doesn’t exist, then status nok is returned.
/REST API to Interact with_7.png)
Create the Staging Area
You need to initiate a POST request to /resources/staging.
/REST API to Interact with_8.png)
curl --request POST \ --url http://localhost:8080/DSPackageInstaller/resources/staging \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 37f51819-9a15-cf5d-99a2-5a598437a889'
Here, response status depends on the existence of the staging area.
For non-existing staging area, status is success (ok).
/REST API to Interact with_9.png)
For an already existing staging area, status is failure (nok).
/REST API to Interact with_10.png)
Check the Package List
To get what are the packages available within the webapp (inferred from package-list file), you need to initiate a GET request to /resources/package.
/REST API to Interact with_11.png)
curl --request GET \ --url http://localhost:8080/DSPackageInstaller/resources/package \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 610bc27e-805a-d968-ebb7-b453ddef12eb'
If a package-list file is found, then status ok is returned with packages present and available for staging.
/REST API to Interact with_12.png)
Check the Package Detail
To check what are the files available for staging (inferred from the package name and its related package-detail file), you need to initiate a GET request to /resources/package/{packageName}. Where, packageName is a valid name returned from the above package list request.
/REST API to Interact with_13.png)
curl --request GET \ --url http://localhost:8080/DSPackageInstaller/resources/package/R17_FT_Modelbank_1_JAVA_17.1 \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 8dae6110-531d-026c-5394-d6d2bd851d0f'
If a package-detail is found for the package name, then status ok is returned with an array of records, represented by their technical key and their path within the webapp.
/REST API to Interact with_14.png)
/REST API to Interact with_15.png)
Check a Record Content
To read a file content within the webapp, you need to initiate a GET request to /resources/package/record/{recordPath}. Where, recordPath is the path to the record as returned from the package detail above.
Path separator must be escaped and replaced by %2F.
That is to access
R17_FT_Modelbank_1_JAVA_17.1/ds-generated/AI.ACCTMANDATE.VIEW.enquiry.xml
Escape separators to
R17_FT_Modelbank_1_JAVA_17.1%2Fds-generated%2FAI.ACCTMANDATE.VIEW.enquiry.xml
/REST API to Interact with_16.png)
curl --request GET \ --url http://localhost:8080/DSPackageInstaller/resources/package/record/R17_FT_Modelbank_1_JAVA_17.1%2Fds-generated%2FAI.ACCTMANDATE.VIEW.enquiry.xml \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: d59c7bee-cdc3-dd78-e031-ee1663e3e054' If the record path exists the record content is returned with status ‘ok’.
/REST API to Interact with_17.png)
/REST API to Interact with_18.png)
Write all Packages to the Staging Area
To write all files of each package from the package-list (to TAFJ_PACKAGE and TAFJ_PACKAGE_RECORD with default component implementation), initiate a PUT request to /resources/staging/all.
/REST API to Interact with_19.png)
curl --request PUT \ --url http://localhost:8080/DSPackageInstaller/resources/staging/all \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: e9905ea1-ddb4-be05-9091-8a335305ae4e'
If the staging area has been created and all files are successfully written to the staging area tables, then the list of files persisted with their technical key and path are returned with status ok. Otherwise, status will be nok with the list of files which have failed to be written.
/REST API to Interact with_20.png)
/REST API to Interact with_21.png)
Write a Package to the Staging Area
To write all files of a package to the staging area (to TAFJ_PACKAGE and TAFJ_PACKAGE_RECORD with default component implementation); initiate a PUT request to /resources/staging.
The package to be persisted has to be passed through a form url encoded parameter as shown below with parameter name packageName.
/REST API to Interact with_22.png)
curl --request PUT \ --url http://localhost:8080/DSPackageInstaller/resources/staging \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 6a092c9d-334a-2a27-0a8e-3629b68ee796' \ --data packageName=R17_FT_Modelbank_1_JAVA_17.1
If the staging area has been created and all files are successfully written to the staging area tables, then the list of files persisted with their technical key and path are returned with status ok. Otherwise, status will be nok with the list of files which have failed to be written.
Write a Single Record
Place a PUT request to /resources/staging/record/. The record to be persisted has to be passed through form url encoded parameters as shown below with parameter name recordKey and recordPath.
Record path separators needs to be escaped (/) and replaced by %2F.
/REST API to Interact with_23.png)
curl --request PUT \ --url http://localhost:8080/DSPackageInstaller/resources/staging/record \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 78707c51-ccaf-4cd1-55e3-5c6be2104d89' \ --data 'recordKey=R17_FT_Modelbank_1_JAVA_17.1-2&recordPath=R17_FT_Modelbank_1_JAVA_17.1%2Fds-generated%2F151.xml'
/REST API to Interact with_24.png)
Read a Record from the Staging Area
To check if a record has effectively been persisted, its content can be read from the staging area by placing a GET request to /resources/staging/record/{recordKey}. Where, recordKey is the technical record key, RECID at staging area level.
/REST API to Interact with_25.png)
curl --request GET \ --url http://localhost:8080/DSPackageInstaller/resources/staging/record/R17_FT_Modelbank_1_JAVA_17.1-2 \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 74c5cee1-6b50-4c6b-d7a8-0fa400d01f24'
If the record is found, then status ok is returned with record content.
/REST API to Interact with_26.png)
/REST API to Interact with_27.png)
Read a Package from the Staging Area
To check whether all records part of the package (package-detail entries) are written to the staging area; place a GET request to /resources/staging/{packageName}. Where, packageName is the package name as shown in the package-list.
/REST API to Interact with_28.png)
curl --request GET \ --url http://localhost:8080/DSPackageInstaller/resources/staging/R17_FT_Modelbank_1_JAVA_17.1 \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 05358b10-d116-aafa-39ff-259551f27aad'
It returns the status ok and the list of records successfully written to the staging area.
If there are missing records, then it means entries are present in the package-detail but not at staging area level, therefore, their list will be returned with status nok.
/REST API to Interact with_29.png)
/REST API to Interact with_30.png)
Clear the Staging Area
To clear all tables part of the staging area issue a POST request to /resources/staging/clear.
/REST API to Interact with_31.png)
curl --request POST \ --url http://localhost:8080/DSPackageInstaller/resources/staging/clear \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 26d33642-6748-efa2-3b88-d297a76e1d02'
Status ok with list of tables cleared is returned.
/REST API to Interact with_32.png)
Delete all Packages from the Staging Area
To delete entries related to all packages part of the package-list from the staging area; place a DELETE request to /resources/staging/all.
/REST API to Interact with_33.png)
curl --request DELETE \ --url http://localhost:8080/DSPackageInstaller/resources/staging/all \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 3e71d9e9-d637-7721-2bab-5150485cd26b' \

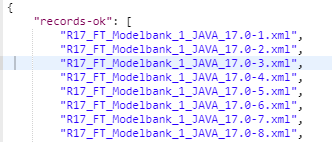

/REST API to Interact with_34.png)
/REST API to Interact with_35.png)
Delete a Package from the Staging Area
To delete all entries related to a specific package from the staging area; place a DELETE request to /resources/staging/{packageName}.
/REST API to Interact with_36.png)
curl --request DELETE \ --url http://localhost:8080/DSPackageInstaller/resources/staging/R17_FT_Modelbank_1_JAVA_17.1 \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 503d55f1-deff-75de-a64c-898d00e32593' \
/REST API to Interact with_37.png)
/REST API to Interact with_38.png)
Delete a Single Record from the Staging Area
DELETE request to /resources/staging/record/{recordKey}.
/REST API to Interact with_39.png)
curl --request DELETE \ --url http://localhost:8080/DSPackageInstaller/resources/staging/record/R17_FT_Modelbank_1_JAVA_17.1-1 \ --header 'authorization: Basic dGFmajp0YWZqITIwMTY=' \ --header 'cache-control: no-cache' \ --header 'content-type: application/x-www-form-urlencoded' \ --header 'postman-token: 8ecbee0d-c249-fb57-08c3-25ed2d3a582f' \
/REST API to Interact with_40.png)
