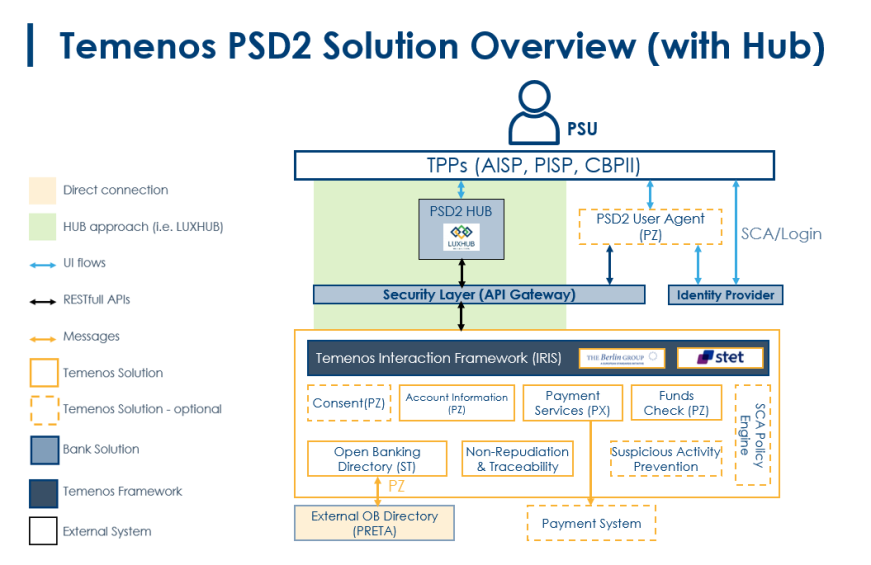

Introduction to PSD2

• Open Banking Directory to hold a list of regulated TPPs (ST module)
• TPP Validation and Consent Validation (ST module)
• Consent Framework for AIS calls (PZ module)
• Provider APIs – Temenos Transact enquiries and versions

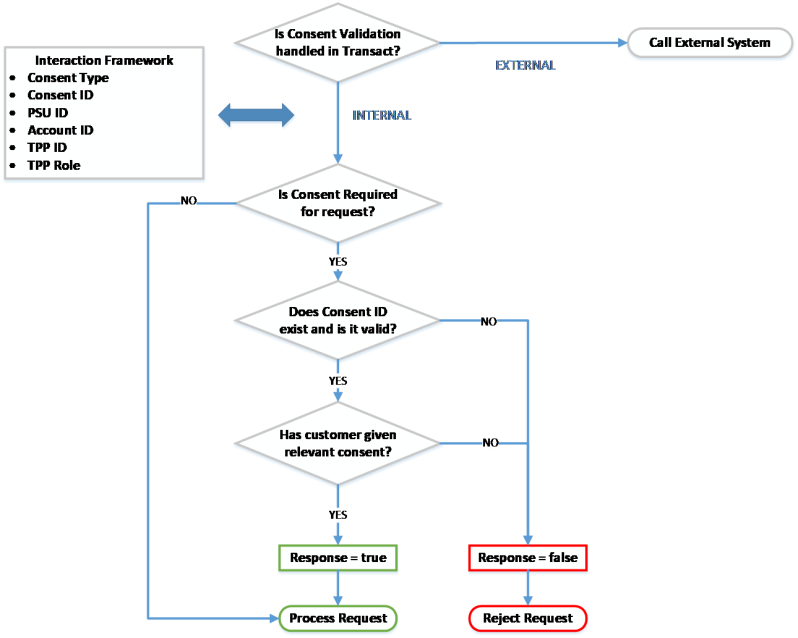

  • Consent Validation (PZ module)
  • Account Information APIs (PZ module)
  • Payment Initiation or Processing APIs (PX module)
  • Initiating Authorisations workflow (PX Payments and PZ Consent)
    • Depending on the payment system of the bank
      • Payment Order
      • Standing Order (STO)
      • Funds Transfer (FT)

• SEPA module (for Payments)
• IBAN (for Payments)
• AA Framework (for Consent)
• Interaction Framework (IRIS) (for Published APIs)

In Scope of Temenos Products

• User Agent – Channels Delivery. Read the User Agent user guide for more information.
• Published APIs – IRIS and Interaction Framework Delivery. Read the IRIS user guide for more information.
• Policy Engine or Fraud Monitoring – Financial Crime Management Product Delivery. Read the FCM user guide for more information.
• Non-repudiation and traceability – Security Product Delivery. Read the Security user guide for more information.

Not in Scope of Temenos Products

• API Gateway or Security Layer – Not provided by Temenos, but is mandatory in the bank’s architecture.
• Identity or Authentication Provider – Not provided by Temenos, but is mandatory in the bank’s architecture.
• PSD2 Hub like LUXHUB – Not provided by Temenos, but can be optionally interfaced with our current offering.

The Open Banking Directory holds a list of regulated TPPs who can make PSD2-related requests. It can be manually populated using a core interface with PRETA (depends on the bank’s own subscription to PRETA) or can be configured to be handled externally (for example, when a Hub provides this capability).

Depending on whether the Open Banking Directory is handled externally or within Temenos Transact, this can be configured in the PZ.PARAMETER and PX.PARAMETER applications.

Internal

If the Open Banking Directory is held and maintained within Temenos Transact, the system can perform validations against a TPP that is making a PSD2-related request using the contents of the directory. Only TPPs that are regulated to make the request would be accepted.

External

If the Open Banking Directory is configured externally to Temenos Transact, the Open Banking Directory within Temenos is not populated. The initial TPP validation is handled in an external system and the request does not meet Temenos Transact if the TPP was not regulated.

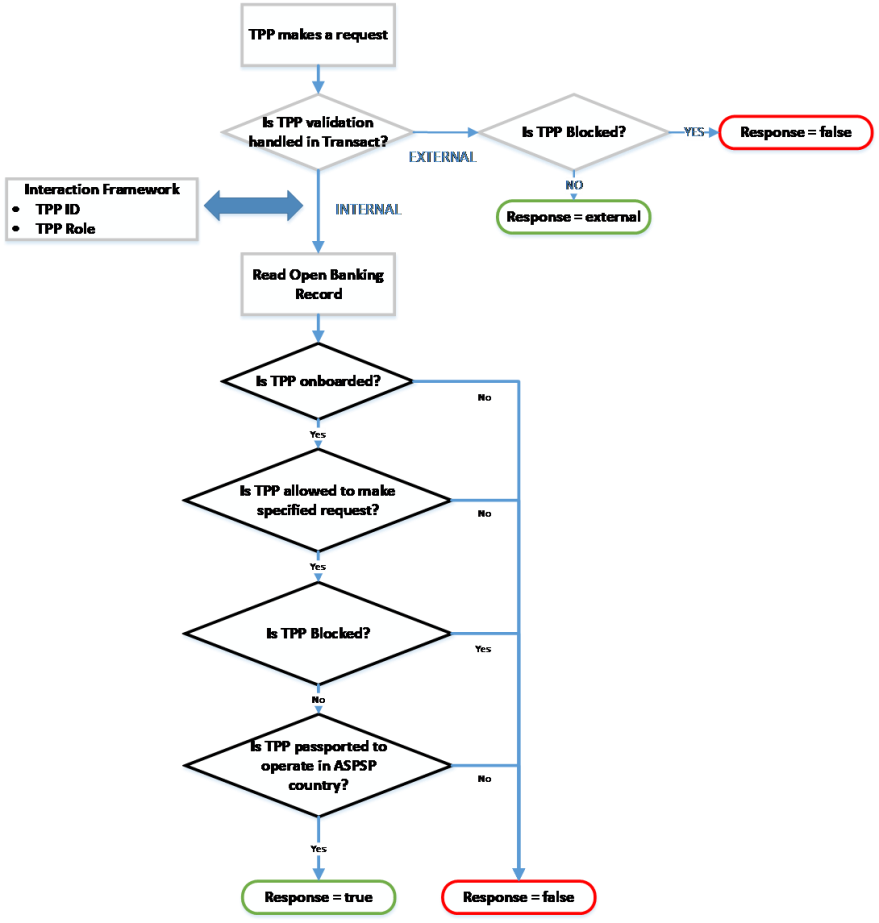

A separate validation process occurs within Temenos Transact to check if the TPP that made the request is not manually blocked by the bank in Temenos Transact (using the Block Tpp field in PZ.PARAMETER or PX.PARAMETER before accepting the request).

Read the TPP Validation section for more information on the validation processes.

ST.OPEN.BANKING.DIR.API,ST.OPEN.BANKING.DIR.PARAMETER and ST.OPEN.BANKING.DIR.REFRESH

These applications assist in the population of the Open Banking Directory from an external directory, such as PRETA.

Not applicable for LUXHUB clients or clients who have not subscribed to the PRETA directory services.

Read the installation guide for more information on these applications.

PZ.OPEN.BANKING.DIR

This application holds the list of regulated TPPs who are allowed to make PSD2-related requests.

It holds a set of information about the TPP as per PRETA’s directory content. It includes its name, global unique identifier and also their regulated roles and countries in which they are allowed to operate.

This application can be manually or automatically populated through an interface with directories (such as PRETA). Temenos Transact supports an automated interface with PRETA, which means the PRETA directory can be uploaded automatically through an interface.

NOTE: The automated interface of the directory is subject to banks having their own subscription to PRETA.

Both of these approaches can be taken when the Obd Provider field in PZ.PARAMETER or PX.PARAMETER is set as a valid ST.OPEN.BANKING.DIR.PARAMETER Record ID value.

If the value of the Obd Provider field in the parameter table(s) is set as EXTERNAL, this application should not be populated as the TPP Validation is handled before reaching Temenos Transact.

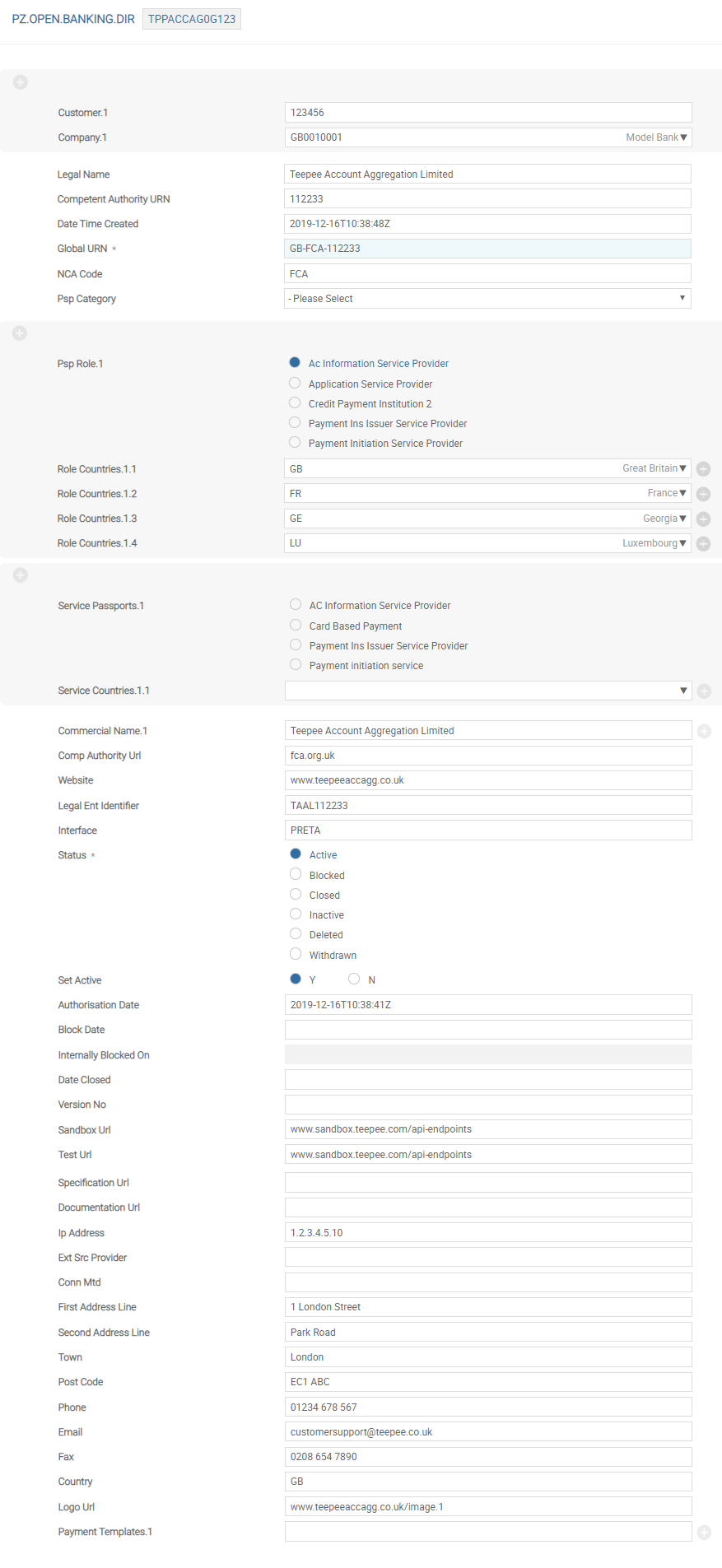

The screenshot below shows an example of the application, a quick summary of each field and its intended use:

Field	Description
Customer	If the TPP company is also a customer within Temenos Transact, this field can be populated with a valid Temenos Transact customer number. This field is optional and is manually entered by a user. The value in this field is not populated through an interface and is used for informational purposes only.
Company	Transact company of the customer in the previous field. This field requires manual input.
Legal Name	Registered name of the TPP, as per the NCA.
Competent Authority URN	Unique Reference Number (URN) of the TPP at the NCA.
Date Time Created	Date and time that the TPP was uploaded to the Directory. This is a no-change and mandatory field.
Global URN	Global URN of the TPP. This should be a unique reference. It includes a country code, NCA identifier and then a unique numeric value. For example, GB-FCA-100008.
NCA Code	ID of the record in the NCA table, which contains the NCA data for this record.
Psp Category	Valid TPP category
Psp Role	Multi-value field and is used to define the role for which the TPP is registered. It is used in the TPP Validation process to check if the TPP is allowed to make a particular request. The allowed options for this field are: Account Information Service Provider (AISP) Payment Instrument Issuer Service Provider (PIISP / CBPII) Payment Initiation Service Provider (PISP) It is linked to Role Countries field.
Role Countries	This field is the second part of a multi-value set and is linked to the Psp Role field. It holds the country in which the TPP is regulated to operate its services for the specific role mentioned in Psp Role. For example, if a TPP is regulated as an ‘Account Information Service Provider’ in both Great Britain and France, the Psp Role would be Account Information Service Provider and the Role Countries value would be GB and FR. This value is used during the TPP Validation. A comparison is made against the Local Country of the COMPANY receiving the request.
Deleted	Allowed values are: TRUE − The record is deleted from the directory. FALSE − The record is still live in the directory.
Service Passports	Currently not in use.
Service Countries	Currently not in use.
Commercial Name	Multi-valued list of commercial names for the entity. For example, Google Payments, Google Pay. If there is a single commercial name, only one name is recorded here.
Comp Authority Url	URL to the NCA source of this data.
Website	Website of the TPP as specified in the NCA Register.
Legal Ent Identifier	Free text field. The Legal Entity Identifier of the entity as specified in the NCA Register. It accepts alphanumeric characters.
Interface	Free text field. Enter the name of interface. For example, PRETA.
Status	Holds the NCA or PRETA status of the TPP. Allowed options are: Active – TPP is regulated and active. Blocked – TPP’s services are blocked. Closed – TPP has ceased and closed its services. Deleted Inactive Withdrawn During the TPP Validation, this field is used along with Set Active field to determine the overall status of the TPP and whether requests can be accepted. If the Status and Set Active fields are positive (that is, Status = Active and Set Active = (null) or Y), requests are accepted from the TPP. If the Status or Set Active field is negatively set, the system does not accept an incoming request from this TPP.
Set Active	This field is not populated from the external directory and must be manually input and maintained by an authorised bank user. It holds the bank’s (ASPSP’s) own status of the TPP and whether they want to actively accept requests from this TPP. In validation processes, it is used in conjunction with the Status field. Allowed values are: N (No) − The bank does not allow requests from this TPP. When this field is set to No, the TPP is not ‘set active’ by the bank. In this instance, requests are not accepted from this TPP. Y or Null (Yes) − The bank allows requests from this TPP. When this field is set to Yes, the TPP is ‘set active’ by the bank. In this instance, requests are accepted from this TPP if the Status field is set to Active. Only if the Status and Set Active fields are positive (that is, Status = Active and Set Active = (null) or Y), requests are accepted from the TPP. If the Status or Set Active field is negatively set, the system does not accept an incoming request from this TPP. This field remains unchanged during an automated update from the external directory.
Authorisation Date	Date on which the entity is authorised by the NCA.
Block Date	Date on which the entity is blocked by NCA. It is mandatory when Status is BLOCKED.
Internally Blocked On	No input field. If Set Active field is changed from any other value to N, the current server date and time are captured in this field. Reset to NULL if Set Active is changed from N to any other value.
Date Closed	Holds the date the entity is withdrawn from the NCA Register.
Version No	Holds the version number of the TPP record from the external directory. This version increments each time a new version is published and refers to the version number in the NCA directory. This may be part of a regular download (daily) or based on a real-time update when the source data changes.
Sandbox Url	Optional field
Test Url	Optional field
Specification Url	Optional field
Documentation Url	Optional field
Ip Address	Holds the registered IP address of the TPP.
Ext Src Provider	Free text field
Conn Mtd	Holds the connection method. It is an optional field.
First Address Line	Holds the first line of the TPP’s registered address.
Second Address Line	Holds the second line of the TPP’s registered address.
Town	Holds the town of the TPP’s registered address.
Post Code	Holds the postcode of the TPP’s registered address.
Phone	Holds the registered telephone number of the TPP.
Email	Holds the registered email address of the TPP.
Fax	Holds the registered fax number of the TPP.
Country	Holds the country of the TPP’s registered address.
Logo Url	Includes the URL link to the TPP’s registered logo.
Payment Templates	Types of payments allowed for an entity.
Time Zone	Time zone in which the TPP operates.
Alternate Id	Holds any alternative identifiers of the TPP, if required.

Configuration

As a prerequisite, the system should be configured as per the installation guide.

1. Overview of the Open Banking Directory

   The Open Banking Directory holds a list of the regulated TPPs who can make PSD2 related requests. The Open Banking Directory can be manually populated, populated using a core interface with PRETA*, or can be handled externally (like in LUXHUBs case).

   Depending on whether the Open Banking Directory is handled externally or within Temenos Transact, it can be configured in the Obd Provider field in PZ.PARAMETER or PX.PARAMETER tables.

   • Internal Validation – If the Open Banking Directory is held within Temenos Transact, the system can perform validations against any TPP that makes a PSD2 related request. Only TPPs who are regulated to make the request are accepted. The validation checks the contents of the Open Banking Directory records to identify if the TPP is regulated or not.
   • External Validation – If the Open Banking Directory is handled externally to Temenos Transact, the Open Banking Directory within Temenos is not populated. Before accepting the request, the validation process checks if the TPP making the request is not manually blocked in the system.

   Read the TPP Validation section for more information on the validation processes.

   The configuration of this is detailed below in the document.

   • Automated Interface configuration
   • Manual Population configuration
2. Automated Population of the Directory through PRETA Interface

   The system provides a mechanism to interface with an external Open Banking Directory called PRETA. The bank must have their own subscription to PRETA to use this functionality.

   This document outlines the step-by-step process of using this interface to populate the system’s internal Open Banking Directory application (PZ.OPEN.BANKING.DIR) used during TPP Validation process.

   The intention of holding an Open Banking Directory within Transact is for clients where the TPP Validation does not happen externally (that is, like a PSD2 Hub such as LUXHUB). By internally populating the directory, banks hold an updated list of all regulated TPPs (and their allowed roles and services). This internal directory can then be validated against, when any API call is made.

   The Open Banking Directory can be populated automatically through PRETA, or manually.

   This document outlines the automatic process to:

   1. Perform the initial upload of the PRETA Directory into Temenos Transact.
   2. Run ongoing updates to ensure the most up to date information is recorded and used for validation (get all changes in the directory).
   3. Get a specific TPP’s information.
   4. Get a specific versions of a TPP’s information.
   5. Accept a ‘push’ request from PRETA.

   Temenos currently only supports an automated interface with PRETA (where the bank has a subscription).

   Any other external Open Banking Directory needs a customised solution to be interfaced with Temenos Transact.

3. Configuration Tables

   The configuration and processing of the Open Banking Directory upload is handled within a number of parameter tables.

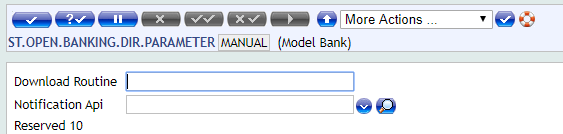

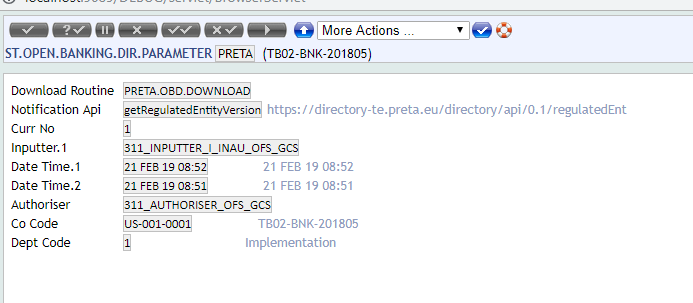

   ST.OPEN.BANKING.DIR.PARAMETER

   This application defines the connection between Temenos Transact and the external directory (PRETA). It is used within a ‘push’ process from PRETA for changes to the directory after the initial download.

   This record must be created first and used during later processing. The application is consists of the following fields:



   @ID − The ID of the record should be PRETA for the PRETA download.

   Field	Description
   Download Routine	Set as PRETA.OBD.DOWNLOAD. This routine is delivered from Temenos.
   Notification Api	This is updated once the subsequent ST.OPEN.BANKING.DIR.API table is created for getRegulatedEntityVersion.

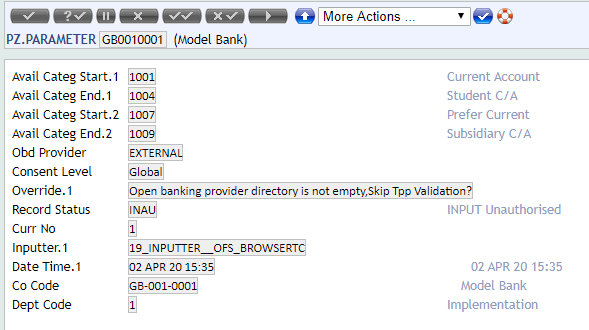

   Updates to PZ and PX Parameters

   Once a value is created in this application, the ID of the record should be populated in the Obd Provider field in PZ.PARAMETER or PX.PARAMETER applications (depending on the modules installed).

   This helps with TPP validation in a later process to identify the PZ.OPEN.BANKING.DIR records to validate against.

   PZ.PARAMETER	PX.PARAMETER

   ST.OPEN.BANKING.DIR.API

   This application must be used by bank administrators only. This application is one of the main parameter applications for the PRETA download and helps in the initial and continuous download of TPP information from PRETA.

   This application holds the definition and expected values for API routines specified by PRETA which is used to retrieve the TPP data. The names and expected processing of these routines are as follows:

   PRETA Specified API	Intended use
   getAllRegulatedEntityChanges	Used for the initial download of PRETA data. It obtains the entire list of regulated TPPs and the respective details. Also used for the initial download of TPP data and on an ongoing basis.
   getRegulatedEntity	Used by an ASPSP to request the recent details of a specified TPP.
   getRegulatedEntityVersion	Used by an ASPSP to request the details of a specific version of TPP.

   A record must be created in the ST.OPEN.BANKING.DIR.API application for each of the above APIs. Read Expected Configuration for each API record for more information.

   The application consists of the following fields:



   NOTE: In the above screenshot the API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.

   @ID − This includes one of the following:

   • getAllRegulatedEntityChanges
   • getRegulatedEntity
   • getRegulatedEntityVersion

   It is not recommended to create any other record ID at this time.

   Field	Description
   Url	URL provided to the ASPSP by PRETA. Note: The URLs in the below configuration screenshots are test URLs.
   Parameter	Multi value field and allows the following EB.OBJECTs: API-Key recordDate maximumResults globalUrn recordVersion The EB.OBJECT explains the parameter setting. The actual value of the parameter needs to be stored within the Value field. The details of this can be found in the Value description. Duplicate values are not allowed.
   Type	Explains where the parameter is used within the routine. Allowed values are: Header Path Query
   Mandatory	Defines if the value in the following field is mandatory. Allowed values are: Yes No
   Value	Default value of the field. Its value is dependant on the Parameter field.

   EB.OBJECT	Description	Applicable to API?
   		getAllRegulated EntityChanges	getRegulated Entity	getRegulated EntityVersion
   API-Key	Provided by PRETA and is the license key to access their data. It must only be available within this application and not available to all bank staff.	Yes	Yes	Yes
   recordDate	Starting date when TPP data must be returned.	Yes	No	No
   maximumResults	Maximum number of results that should be returned by PRETA at a time. It can be used for performance purposes, if required.	Yes	No	No
   globalUrn	Used to specify the Global URN reference of a TPP data for which data is required.	No	Yes	Yes
   recordVersion	Used to specify the record version of a TPP	No	No	Yes

   These values can be overridden in the PZ.OPEN.BANKING.DIR.REFRESH application.

   Expected Configuration for each API record

   getAllRegulatedEntityChanges

   The record should be configured as given below.



   NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.

   getRegulatedEntity

   The record should be configured as given below.



   NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.

   getRegulatedEntityVersion

   The record should be configured as given below.



   Once this record is created, this value must be populated in the Notification Api field in ST.OPEN.BANKING.DIR.PARAMETER.

   NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.

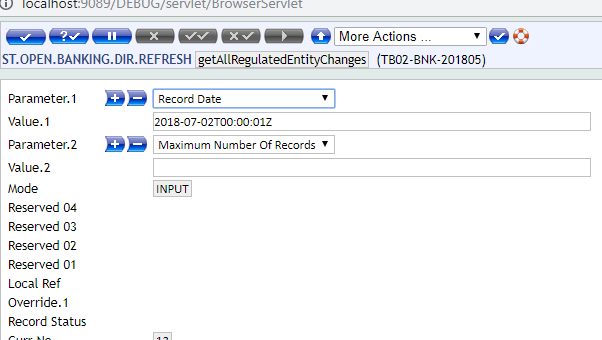

   ST.OPEN.BANKING.DIR.REFRESH

   The ST.OPEN.BANKING.DIR.REFRESH application creates a trigger to retrieve the content of the PRETA Directory. This process allows the bank to have the most up to date information from PRETA, which includes the list of regulated TPPs, their roles and passports.

   Read Automated PRETA Download section for more information on the workflow for each PRETA download process. However, these records must be configured as a prerequisite to the process. The following APIs are outlined by PRETA:

   • getAllRegulatedEntityChanges
   • getRegulatedEntity
   • getRegulatedEntityVersion


   A corresponding record for each API must also be created in this application and verified to trigger the relevant process.

   When the user inputs the record @ID, the values from the corresponding ST.OPEN.BANKING.DIR.API record default in the Value field. A user can modify these values, if required.

   Based on the authorisation of the record, a trigger is created. This trigger is then picked up in the ST.OBD.DOWNLOAD service.

   The application is made up of the following fields:

   @ID − It must match one of the ST.OPEN.BANKING.DIR.API records.

   Field	Description
   Parameter	Defaults from the corresponding ST.OPEN.BANKING.DIR.API record and is a no change field. NOTE: In the above screenshot the API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.
   Value	Defaults from the corresponding ST.OPEN.BANKING.DIR.API record and is amendable by a user, if required.
   Mode	Defines the status of the record’s processing. Allowed values are: INPUT – When the record is  amended (in the process of creating a trigger). PROCESSED – When the record is processed (the trigger is processed).



   ST.OPEN.BANKING.DIR.URL (Concat)

   On approval of the ST.OPEN.BANKNIG.DIR.REFRESH record, a URL is created and the system automatically creates a record in a concat file ST.OPEN.BANKING.DIR.URL. This URL is used within the IRIS layer to request or retrieve the data from PRETA.

   The concat file contains the following information:

   @ID − This is a valid @ID from ST.OPEN.BANKNIG.DIR.REFRESH.

   Field	Description
   Url	Holds the URL used to access PRETA.
   Header	Unique key used to connect to the PRETA directory. This value differs for each interface.

   ST.OBD.DOWNLOAD (BATCH)

   The below screenshot shows a trigger, which is created based on a ST.OPEN.BANKNIG.DIR.REFRESH record being authorised.



   NOTE: In the above screenshot the API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.

   A batch process is used as a service to pick up the trigger and populate the directory accordingly. The batch process is called ST.OBD.DOWNLOAD.



   ST.OBD.DOWNLOAD (SERVICE)

   The following service picks up triggers created by the ST.OPEN.BANKING.DIR.REFRESH application.

   It is suggested to set to this service to ‘AUTO’ to automatically process the triggers when created.



   PZ.OPEN.BANKING.DIR

   This application holds the list of the regulated TPPs who are allowed to make PSD2 related requests. It holds information about the TPP, which includes its name, global unique identifier and also their regulated roles and countries where they are allowed to operate.

   This application can be handled in the following ways:

   • Automatically updated by PRETA
   • Manually updated by the bank
   NOTE: Both of the above approaches can be taken when the Obd Provider field in the PZ.PARAMETER or PX.PARAMETER is set as a valid ST.OPEN.BANKING.DIR.PARAMETER record ID value.
   • Externally managed (TPP validation not handled in Temenos Transact)

   Automatically updated by PRETA

   This application is populated with the list of TPPs as per the PRETA directory once the configurations are set and the service is run. It holds the relevant information about a TPP as per PRETA’s directory. Read Automated PRETA Download for information on the automated interface.

   Manually updated by the bank

   This application can be manually populated by the bank. Each TPP record and content should be manually input by an authorised bank user. Read Manual Population of Open Banking Directory for more information on this configuration.

   Externally managed (TPP Validation not handled in Temenos Transact)

   If the value of the Obd Provider field in the parameter table(s) is external, this application should not be populated. This is in the example of LUXHUB, where the TPP validation is handled within LUXHUB and therefore is not required to be validated in Temenos Transact. Read TPP Validation is managed externally for more information on this configuration.

   A screenshot of the application is shown below.



4. Mapping between PRETA and Temenos Open Banking Directory

   Mapping between the PRETA Directory and Temenos Transact PZ.OPEN.BANKING.DIR application is provided below.

   PRETA Response	PZ.OPEN.BANKING.DIR Field
   addressLine1	FIRST.ADDRESS.LINE
   addressLine2	SECOND.ADDRESS.LINE
   commercialNames	COMMERCIAL.NAME
   competentAuthorityCode	NCA.CODE
   competentAuthorityCountry
   competentAuthoritySourceUrl	COMP.AUTHORITY.URL
   competentAuthorityStartedDate	AUTHORISATION.DATE
   competentAuthorityStatus	STATUS
   competentAuthorityUrn	NCA.URN
   Country	COUNTRY
   dateStopped	BLOCK.DATE
   Deleted	NA
   directoryStatus	STATUS
   Email	EMAIL
   Fax	FAX
   globalUrn	GLOBAL.URN
   legalEntityIdentifier	LEGAL.ENT.IDENTIFIER
   Name	LEGAL.NAME
   recordVersion	VERSION.NO
   recordDate	DATE.TIME.CREATED
   Phone	PHONE
   postalTown	TOWN.COUNTRY
   Postcode	POST.CODE
   pspCategory	PSP.CATEGORY
   pspRolePassports	NA
   * role	PSP.ROLE
   * countries	ROLE.COUNTRIES
   pspServicePassports	NA
   *Service
   * countries
   Website	WEBSITE
   withdrawalDate	DATE.CLOSED
   latestRecordDate

5. Automated PRETA Download

   The expected five stages of the PRETA download are as follows:

   • Initial Download of Data
   • Subsequent Update of All TPP Data
   • Update one TPP’s Data
   • Retrieve one TPP’s Data for a specified version
   • Receive a ‘Push’ Update from PRETA


   This document outlines a step by step of each process.

   1. Prerequisites

      As a prerequisite, the following applications are configured as explained above.

      • ST.OPEN.BANKING.DIR.PARAMETER
      • ST.OPEN.BANKING.DIR.API
      • ST.OPEN.BANKING.DIR.REFRESH
      • ST.OPEN.BANKING.DIR.URL (Concat)
      • ST.OBD.DOWNLOAD (BATCH)
      • ST.OBD.DOWNLOAD (SERVICE)

   2. Initial Download of Data

      1. Open ST.OPEN.BANKING.DIR.REFRESH application.
      2. Input record of getAllRegulatedEntityChanges.



      Enter the initial Mode as INPUT.

      NOTE: If any other user tries to input the same record when the service is not completed, an error is shown.
      3. Change the relevant values, if required and commit, validate and authorise the record.



      4. A URL is created and stored in the ST.OPEN.BANKING.DIR.URL concat file.
      5. A trigger is created.



      NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.
      6. The ST.OBD.DOWNLOAD service picks up the trigger and processes the request. The below is a sample COMO log:

      In the highlighted lines, the number of records fetched for processing in each step is shown.

      • FETCH control list is the number of records fetched from the ST.OPEN.BANKING.DIR.URL table.
      • SPLIT control list is the number of TPP records fetched using the PRETA URL specified. The sample log shows a full download so the number of records is 157.



      The Mode on the REFRESH record is updated to Processed.



      7. PZ.OPEN.BANKING.DIR application changes from blank to being populated with all PRETA TPP information. A record is created for each TPP. A sample is provided below.

      List of TPPs



      TPP Record Sample



   3. Subsequent Update of All TPP Data

      1. Open ST.OPEN.BANKING.DIR.REFRESH application.
      2. Input record of getAllRegulatedEntityChanges.
      3. Commit, validate and authorise the record.
      4. A URL is created and stored in the ST.OPEN.BANKING.DIR.URL concat file.
      5. A trigger is created.
      6. The service picks up the trigger and processes the request.
      7. PZ.OPEN.BANKING.DIR application is overwritten with the latest values from PRETA.

   4. Updating one TPP’s Data

      1. Open ST.OPEN.BANKING.DIR.REFRESH application.
      2. Input record of getRegulatedEntity.
      3. Commit, validate and authorise the record.



      4. A URL is created and stored in the ST.OPEN.BANKING.DIR.URL concat file.
      5. A trigger is created.



      NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.
      6. The ST.OBD.DOWNLOAD service picks up the trigger and processes the request. The below is a sample COMO log.

      In the highlighted lines, the number of records fetched for processing in each step is shown.

      1. FETCH control list is the number of records fetched from the ST.OPEN.BANKING.DIR.URL table.
      2. SPLIT control list is the number of TPP records fetched using the PRETA URL specified. The sample log shows single record download so its 1.



      The Mode on the REFRESH record is updated to Processed.



      7. The details of the specified TPP is updated in the PZ.OPEN.BANKING.DIR with the latest values.

   5. Retrieve one TPP’s Data for a specified version

      1. Open ST.OPEN.BANKING.DIR.REFRESH application.
      2. Input record of getRegulatedEntityVersion.
      3. Commit, validate and authorise the record.



      4. A URL is created and stored in the ST.OPEN.BANKING.DIR.URL concat file.
      5. A trigger is created.



      NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.
      6. The ST.OBD.DOWNLOAD service picks up the trigger and processes the request. The below is a sample COMO log:

      In the highlighted lines, the number of records fetched for processing in each step is shown.

      1. FETCH control list is the number of records fetched from the ST.OPEN.BANKING.DIR.URL table.
      2. SPLIT control list is the number of TPP records fetched using the PRETA URL specified. The sample log shows single record download so its 1.



      The Mode on the REFRESH record is updated to Processed.



      7. The details of the specified TPP is updated in PZ.OPEN.BANKING.DIR.

   6. Receiving a Push Update from PRETA

      PRETA can send an update to the Temenos Transact instance. This is managed by the ST.OBD.NOTIFICATION application.

      PRETA can send a ‘push’ message with changes for specific TPPs. This message is consumed by the IRIS Layer and uploaded into the PZ.OPEN.BANKING.DIR application.

      The push message is a broadcast from PRETA. Transact receives the details using the following API.

      POST

      ST.OBD.NOTIFICATION,PZ.API.PRETA. NOTIFICATION.1.0.0

      /v1.0.0/reference/PSD2/OpenBankingDirectories

      Once the notification is received, Transact automatically invokes PRETA’s API to refresh the local cache.

      Steps:

      1. ST.OBD.NOTIFICATION,PZ.API.PRETA.NOTIFICATION.1.0.0 version, the @ID of the ST.OPEN.BANKING.DIR.PARAMETER application should be used in the Aut New Content field of the INTERFACE.NAME as shown below.



      2. 3A POSTMAN request for the POST/v1.0.0/reference/PSD2/OpenBankingDirectories API must be sent.



      3. Once a response is generated, take the value in the ID field and view it in the ST.OBD.NOTIFICATION application.



      4. The OFS queue is updated with the values that are posted in the ST.OPEN.BANKING.REFRESH application.



      5. When the OFS.MESSAGE.SERVICE is run, the ST.OPEN.BANKING.DIR.REFRESH record gets updated with value in ST.OBD.NOTIFICATION.



      6. Once the application is updated, the Trigger file is updated



      NOTE: The API key is hidden for security purposes. This should be populated using the API key provided to the bank by PRETA.
      7. On running ST.OBD.DOWLOAD service, the TPP is downloaded from PRETA and updated in PZ.OPEN.BANKING.DIR.
6. Manual Population of Open Banking Directory

   Some banks may not want an automated update from a given directory and want to manage the on boarding of TPPs manually.

   The following steps need to be performed for allowing the bank to manually populate the Open Banking Directory.

   Create a record within ST.OPEN.BANKING.DIR.PARAMETER application. The @ID of the record is the discretion of the bank.

   In the example below, it is named as MANUAL.



   Then, within the parameter records, the value of the above record (ID) must be input within the Obd Provider field.

   • PZ.PARAMETER (where PZ is installed):



   • PX.PARAMETER (where PX is installed):



   For each TPP which is manually uploaded into PZ.OPEN.BANKING.DIR application, the Interface field for each record must match the value of the record input into the Obd Provider field in the application.

7. TPP Validation is managed externally

   When TPP Validation is handled externally (for example, a PSD2 Hub) before reaching Transact, the parameter applications must be defined with the Obd Provider field as EXTERNAL.

   • PZ.PARAMETER (where PZ is installed)



   • PX.PARAMETER (where PX is installed)



   NOTE: In both parameter applications, a (null) value in the Obd Provider field also defines that TPP validation is handled externally.

Outside of Temenos Transact, IRIS holds an API Mapping that maps the incoming endpoint or request to a TPP role and consent type. This information is used during the TPP and consent validation processes.

This API linking is maintained as API definitions by IRIS for APIs for which consent availability must be checked.

For example, if a GET/{accounts}/{accountID}/balances request is made, the system identifies that the request is an AISP-related request and the customer must have ‘balances’ consent in place on the given account to return the account balances response.

Depending on the bank’s architecture, TPP validation may happen within Temenos Transact or an external system.

• If the TPP Validation is handled within Transact, please refer to the INTERNAL flow.
• If the TPP Validation is handled through an external system (like LUXHUB), please refer to the EXTERNAL flow.

It is mandatory that TPPs are regulated to make PSD2- related requests.

A second check then identifies if the TPP is regulated as per the role of the request. A validation process (to assist with this) is handled in the background and included here for informational purposes.

The routine that handles the validation is called ‘getTppValidateRequest’ and is automatically triggered when receiving a PSD2 request.

The underlying Temenos Transact enquiries for this include:

• PZ.API.VALIDATE.REQUEST.1.0.0
• PX.API.VALIDATE.REQUEST.1.0.0

A diagrammatic representation of the background validation is shown below:

Internal Flow

When the Obd Provider field in PZ.PARAMETER or PX.PARAMETER is set as a valid ST.OPEN.BANKING.DIR.PARAMETER record ID, the TPP validation is handled in Temenos Transact.

The validation process includes the following steps:

Is the TPP regulated in the directory application?

The system validates if the TPP making the incoming request is included within the Open Banking Directory. This is performed by validating whether the Global URN of the TPP matches a value held in the Global URN field in PZ.OPEN.BANKING.DIR.

• If the Global URN does not exist, it implies that the TPP is not regulated. The validation process ends and an error is returned. The request is not accepted or processed.
• If the Global URN exists, it implies that the TPP is regulated. The following checks happen.

Is the TPP regulated as per the role of the request it is making?

If the Global URN exists, the following checks happen.

Based on the type of request that the TPP is making, validate if the TPP is regulated as per the role of the request. Only TPPs regulated as specific roles can make specific requests.

The IRIS layer identifies the type of request the TPP is making. Read the API Mapping section for more information on API definition.

For example, a TPP regulated only as an ‘AISP’ can make account information calls. For example, GET/accounts.

However, a TPP regulated only as a ‘PISP’ cannot make account information calls. Therefore, if a TPP regulated only as a PISP makes a ‘GET/accounts’ call, this is rejected.

The logic for identifying the type of call based on the incoming API is handled within an API definition at the IRIS or Interaction Framework layer.

The type of call and the TPPs regulated roles are compared, which are held in the PSP Role field in the PZ.OPEN.BANKING.DIR record.

• If the TPP is not regulated as the role of the request, the validation returns an error. The request is not accepted.
• If the TPP is regulated as the role of the request, the validation continues to the next check.

Is the TPP blocked or restricted in any way?

If the TPP is regulated as per the role of the request, the following checks happen.

The system checks against the Status and Set Active fields within the PZ.OPEN.BANKING.DIR record.

• The Status field holds the NCA status of the TPP.
• The Set Active field holds the bank’s own status of the TPP.

Only if both fields are set positively, the validation is successful at this stage. The logic for this is as given below:

• If the Status field is set to any status other than ‘Active’, the validation provides an error at this stage. The request is not accepted or processed.
• If the Status field is set as Active, a secondary check is made against the Set Active field.
• If the Set Active field is set as No, the validation provides an error. The request is not accepted or processed.
• If the Set Active field is set as Y or null, the validation is successful.

NOTE: If this field is null, the Status field value takes precedence.

Is the TPP regulated to operate in the country of the ASPSP?

When the preceding validation was successful, a final check is made against the TPP to identify if the TPP is passported to operate in the country of the ASPSP. The system performs a validation against the Local Country of the COMPANY where the request is received and compares this against the list of ROLE.COUNTRIES (of the TPP role of the request).

• If the Local Country does not match one of the values in the Role Countries field, the validation provides an error as the TPP is not regulated to operate within the country of the ASPSP.
• If the Local Country does match one of the values in the Role Countriesfield, the validation is successful as the TPP is regulated to operate within the country of the ASPSP.

If all validations are successfully passed, the TPP Validation response is true.

At this stage, the request can be partially accepted and the Consent Validation process is triggered.

External Flow

When the Obd Provider field in PZ.PARAMETER or PX.PARAMETER is set as EXTERNAL, the Open Banking Directory is handled externally by an external system or hub.

With this configuration, the system does not expect any values in PZ.OPEN.BANKING.DIR. Therefore, no validation is performed against this table. Instead, the system expects that the TPP Validation is performed before reaching Temenos Transact and that the TPP is regulated to make the request.

One validation is performed in Temenos Transact to check if the TPP is manually blocked by the bank. This is configured in the Block Tpp field in the PZ.PARAMETER and/or PX.PARAMETER applications.

The expected value in this field, if entered, is the Global URN of the TPP.

• If the Global URN of the TPP is included within this multi-value field, it highlights the TPP is blocked by the bank. The validation returns an error. The request is not accepted or processed.
• If the Global URN of the TPP is not included in this multi-value field, the TPP is not considered to be blocked and the TPP validation is successful. The technical response to this call would be ‘external’ to identify that the TPP validation is successful; however, it is checked mainly by an external system.

At this stage, the request can be partially accepted and the Consent Validation process is triggered.

If the TPP Validation is successful and it is identified that the TPP is allowed to make a particular request, the system performs a second check to identify if consent is required for the call.

The routine that handles the validation is called ‘getTppValidateRequest’ and is automatically triggered when receiving a PSD2 request.

The underlying Temenos Transact enquiries are:

• PZ.API.VALIDATE.REQUEST.1.0.0
• PX.API.VALIDATE.REQUEST.1.0.0

If consent is required for the call; Is consent available and is it valid.

This validation forms part of the getTppValidateRequest routine. The below workflow outlines the steps that occur within this process:

A check is made to identify if Consent Validation is handled within Temenos Transact.

This is defined in the Consent Mgmt field in PZ.PARAMETER.

Consent handled in bank’s External system

If the Consent Mgmt field in PZ.PARAMETER is set as EXTERNAL, the consent management process is handled by an external system and is not within Temenos Transact.

Consent handled internally in Temenos Transact

If the Consent Mgmt field in PZ.PARAMETER is set as INTERNAL, the consent management process is handled within Temenos Transact. The system performs a number of checks:

Is consent required for the request?

A check is made at the IRIS layer to identify the type of request that is being made. The IRIS layer holds an API Mapping, which identifies the following:

• Type of request that is being made
• If consent is required for the type of request
• If consent type is required for the request

For Berlin Group payment requests, consent is not required. Instead, a separate approval and authentication process is followed.

For Account Information requests, consent is required before accepting the request and sharing any account information to the TPP.

Does Consent ID exist (if given) and is it valid?

The Consent ID must be passed in the incoming request from the TPP.

The Consent ID in the request is compared with the consent arrangement for that customer and TPP combination.

The Consent ID is not considered to be valid when:

• The Consent ID cannot be found.
• The Consent ID is in history.
• The Consent ID does not link to the TPP/customer/account combination.
• The Consent ID has expired.

The Consent ID is considered to be valid when:

• The Consent ID exists.
• It has not expired (the expiry date has not passed).
• It links to the TPP/customer/account combination.

Has the customer given Consent on the account to process the request?

If the Consent ID is valid, a final check is made to check if the customer has given consent to the relevant consent type on the account.

The request is processed only if the customer has granted the consent type required for the request on the account.

The respective API is accepted and processed in the system after the above validations are successfully met. A response is provided to the incoming TPP request.
