All Funds Bank (AFB) Customer Onboarding Installation Guide

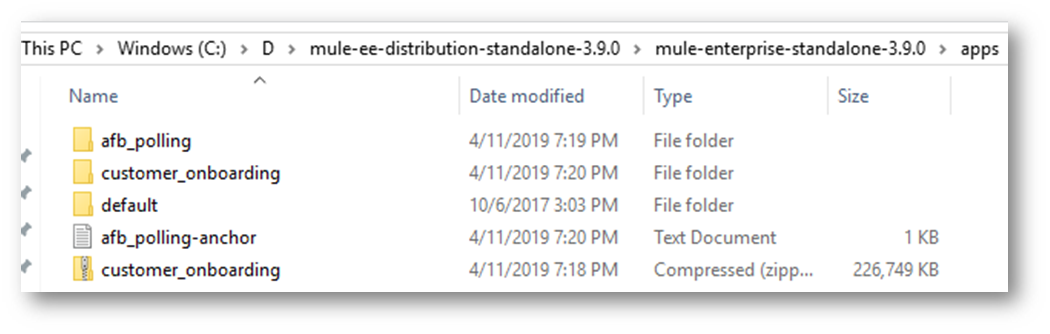

1. Place the mule 7zip file in the Mule server apps path

   \mule-enterprise-standalone-3.9.0\apps



2. After copying the zip file to the app folder, start the server with the AFBHome path. This AFB home path is to pick up the fix property file.
3. Use the command below to start.

   mule –M-DAFBHome=”Path of the property file

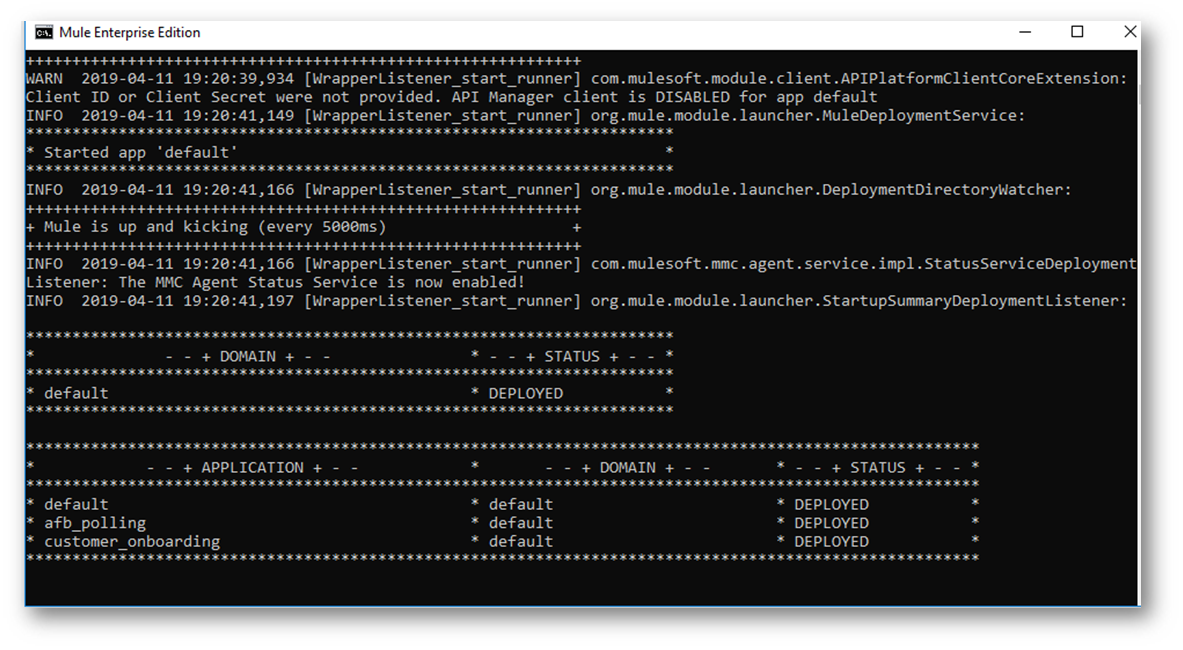

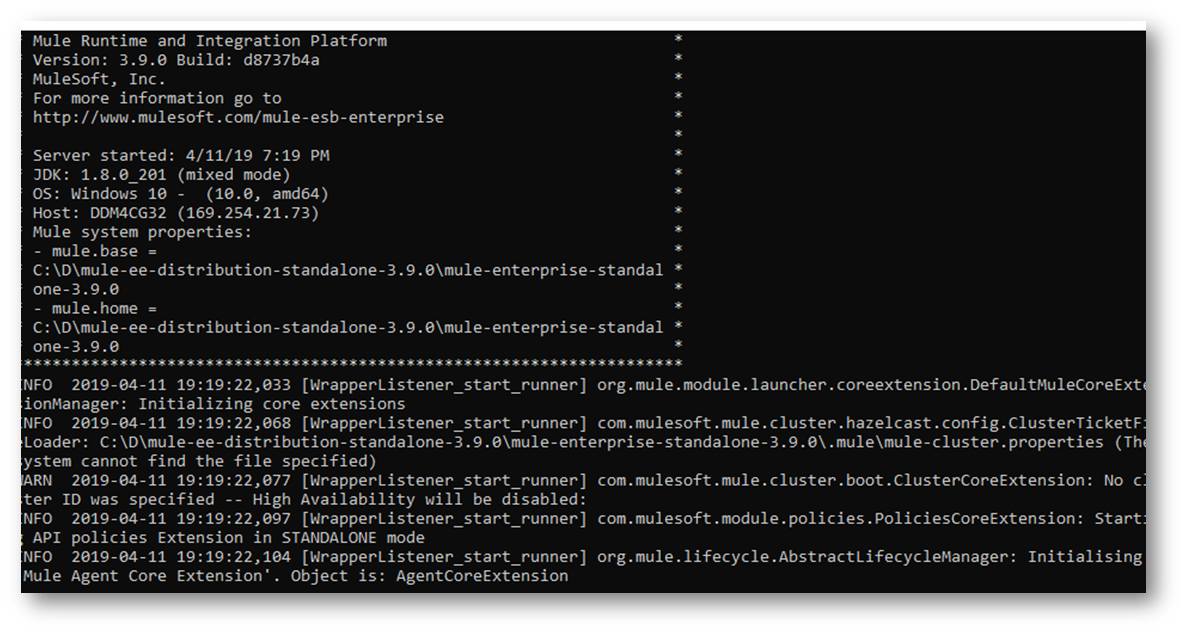

After starting the server, mule pack should get deployed successfully.

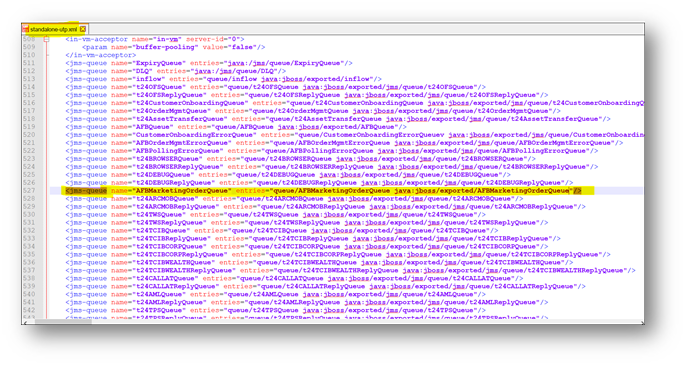

1. To create the new JMS AFBMarketingOrderQueue queue add queue details in the Jboss Standalone file for the Security Master update.



2. The queue details are below:

<jms-queue name="AFBMarketingOrderQueue" entries="queue/AFBMarketingOrderQueue java:jboss/exported/AFBMarketingOrderQueue"/>

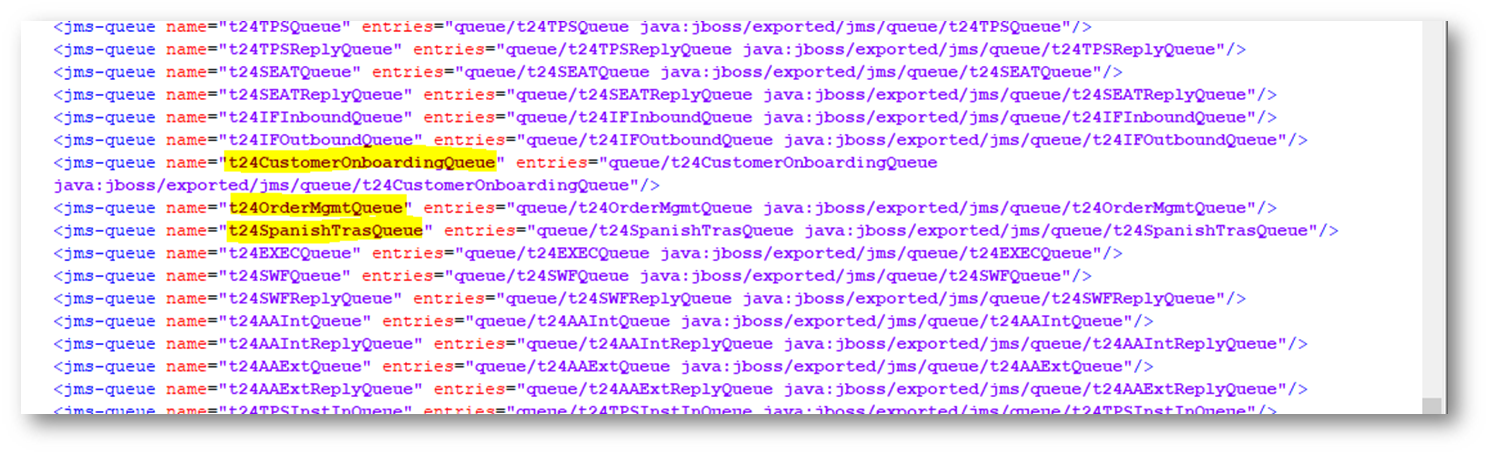

3. Create the above queues in the queue server as well.

Before starting the deployment process, ensure that the application, version, component aervice and the TSA service that is used in the events in the package, are available in the destination Temenos Transact environment.

Follow the steps below to deploy the package.

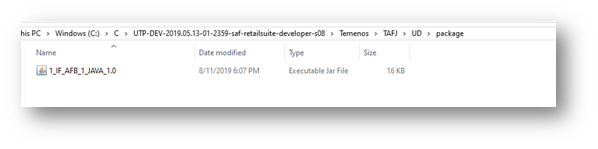

1. Copy the package to the package folder, under the run directory in Temenos Transact. Here it is UD:



   The run directory is the value mentioned in the temn.tafj.runtime.directory.current property of TAFJ configuration file.

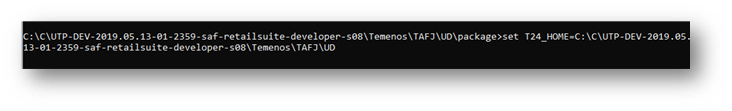

2. Set the run directory as T24_Home as displayed below:

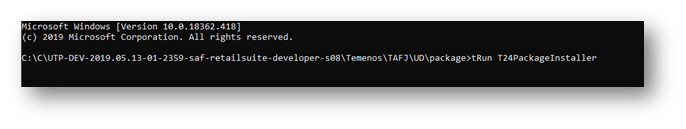

3. Run the T24PackageInstaller command:



4. The successful execution of the command will result in the message below.

Success:Update 1_IF_AFB_1_JAVA_1.0 Successfully copied the libraries and binaries.

5. The same can be verified by viewing the record in T24.MODEL.PACKAGES application.
6. The next step is to execute the packageDataInstaller command to get the exit point and flows created in Temenos Transact.



7. Once the above command is successful executed, the same can be verified by checking the T24.MODEL.PACKAGE record, where the DATA.RELEASED has to be set to Y:
8. The exit point and the flow record also can be verified for the existence.

Once the deploying the AFB events is done, the following Temenos Transact configurations have to be done:

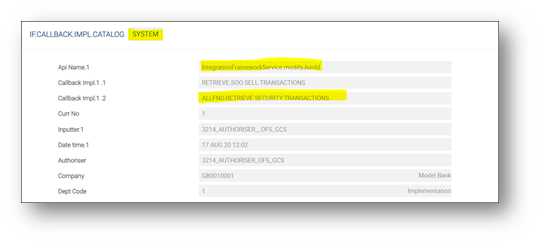

1. For the exit point complex join, it needed to call the Temenos Transact routine. This routine name should be configured in the application IF.CALLBACK.IMPL.CATALOG.

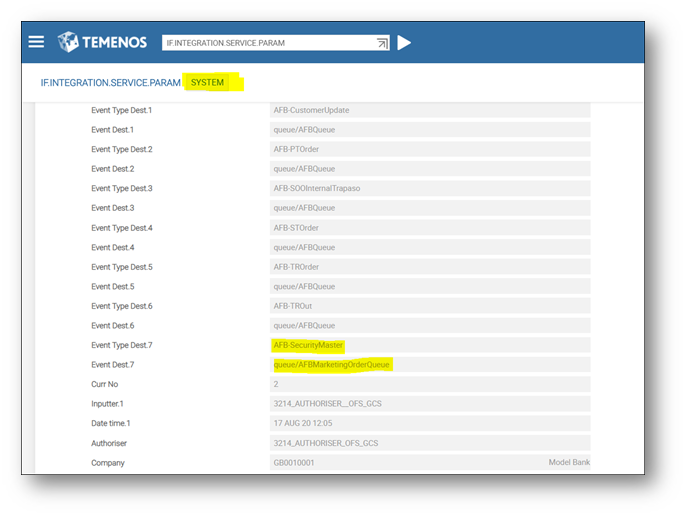

2. To poll the data from IF.EVENTS.INTERFACE.TABLE to AFB queue, the following configuration are used.

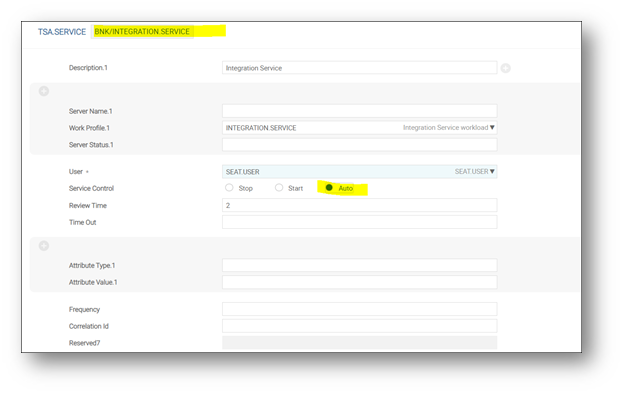

3. Set the INTEGRATION.SERVICE to Auto mode and TSM to Start. This is the service that is used to poll out the IF events data to the corresponding queue.
