Sectras Installation Guide

This document aims at explaining the installation procedures required to install this package successfully in Temenos Transact. The scope of the document is to cover the release mechanism of the package.

When transferring the pack via FTP the transport method must be set to binary.

Configuring the System

Follow the steps below to configure the system.

ClosedSetting Up Queues

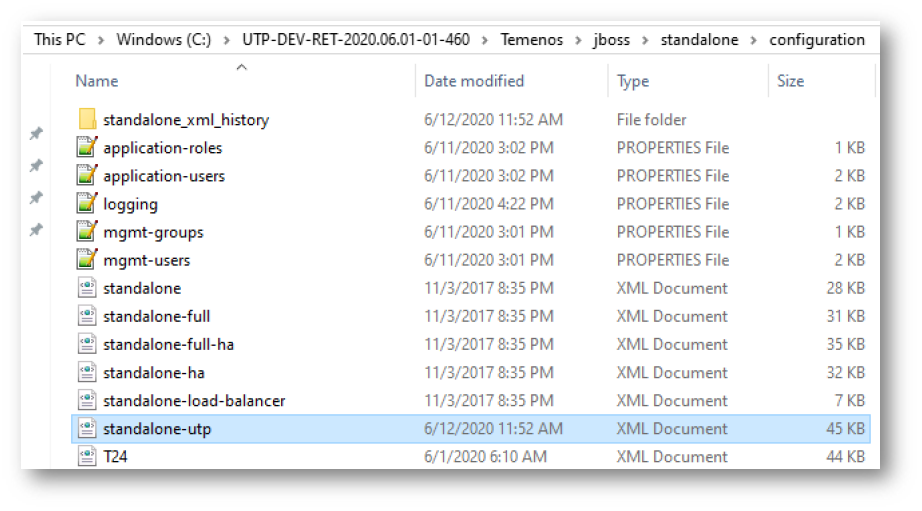

  1. The queues to be utilized must be added to the standalone-utp.xml file.

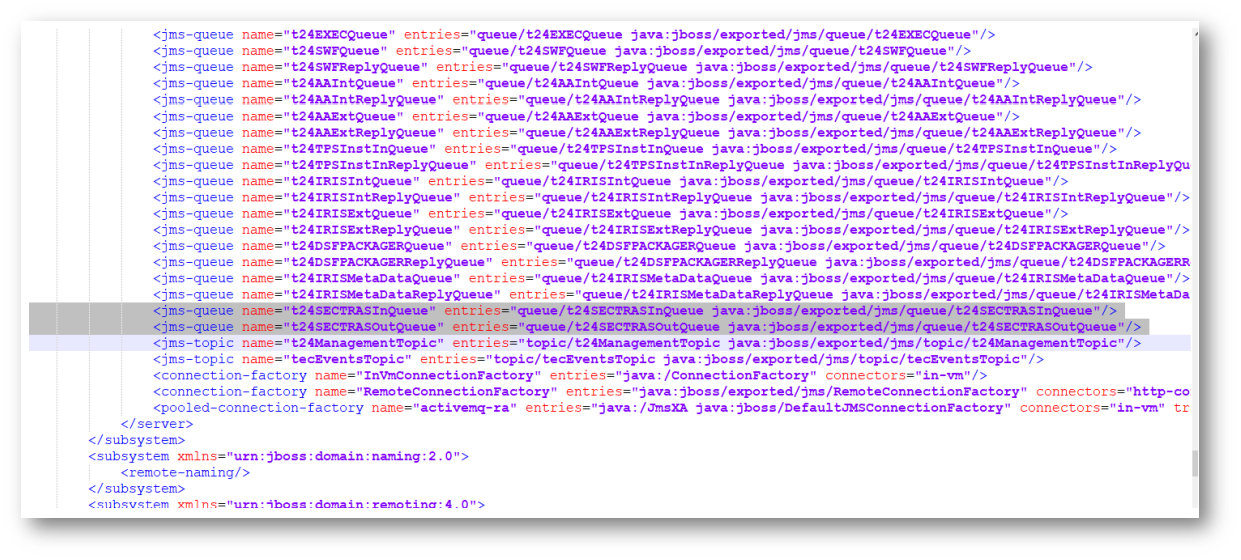

  2. The path and format is as shown below.
  3. Here we mentioned as our local reference XML file. Kindly make changes in the client area configuration Jboss XML file.

  1. Here kindly configure the Sectras shared queue details.

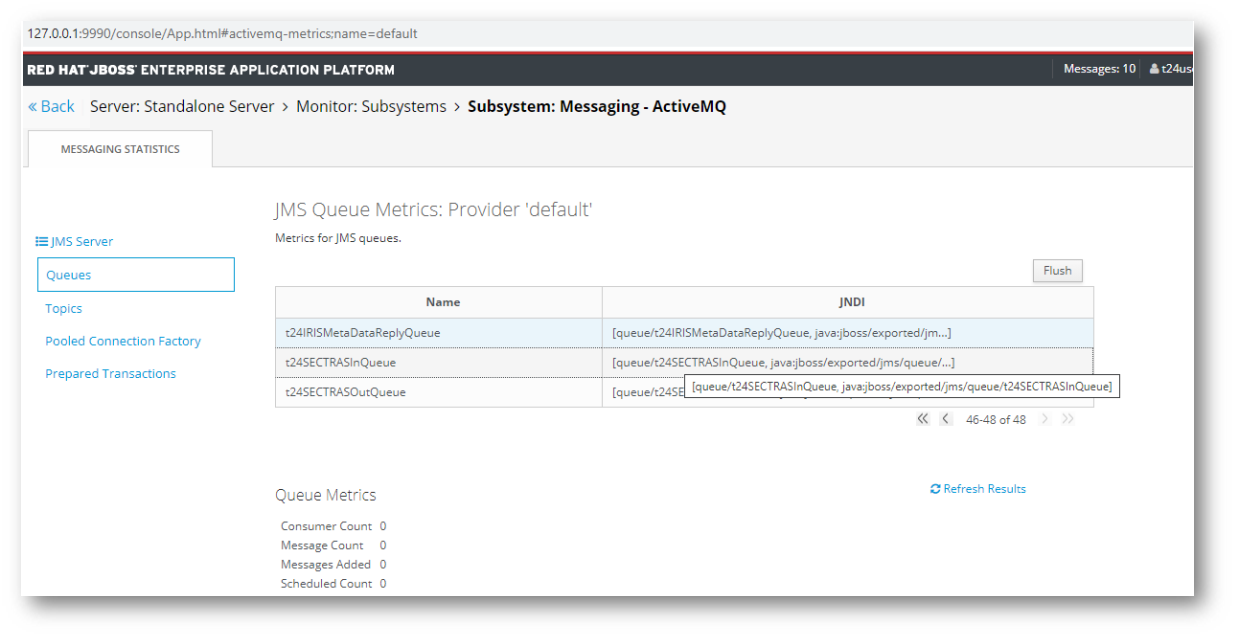

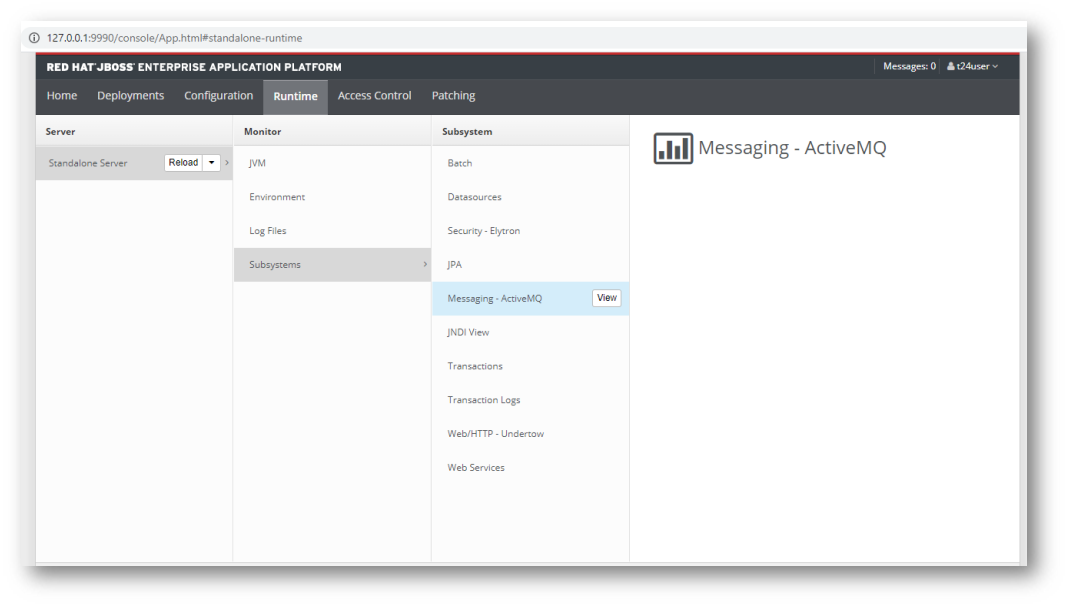

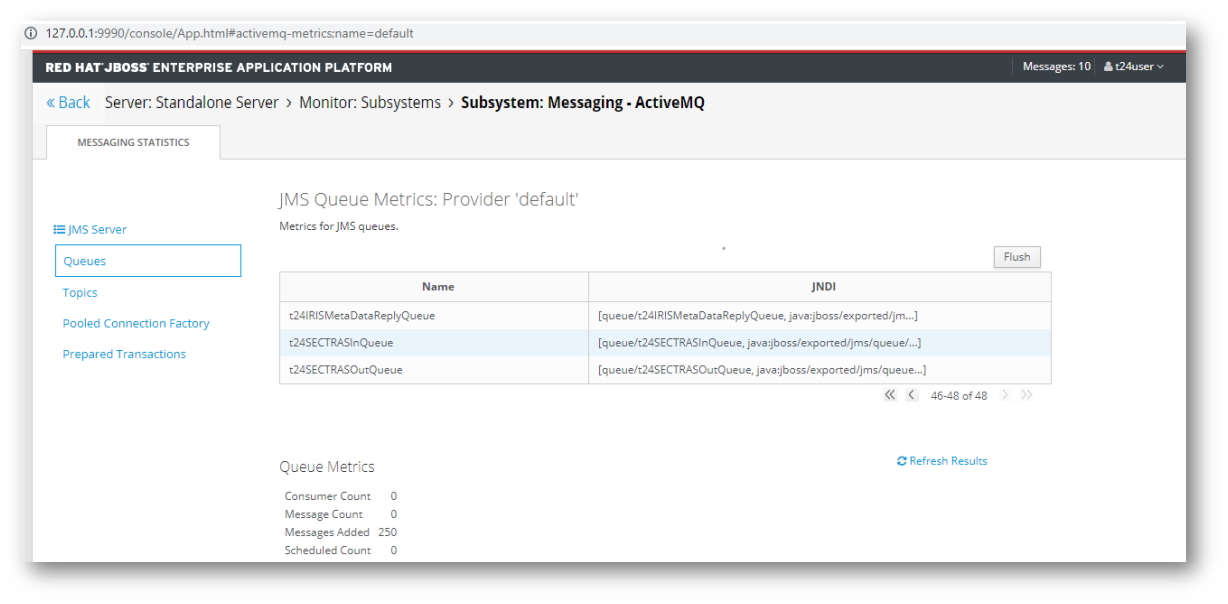

  2. The queues can be viewed in http://127.0.0.1:9990/console/App.html#standalone-runtime.

ClosedSectras Outward Queue
  1. The JMS injector war will send messages to the queue.

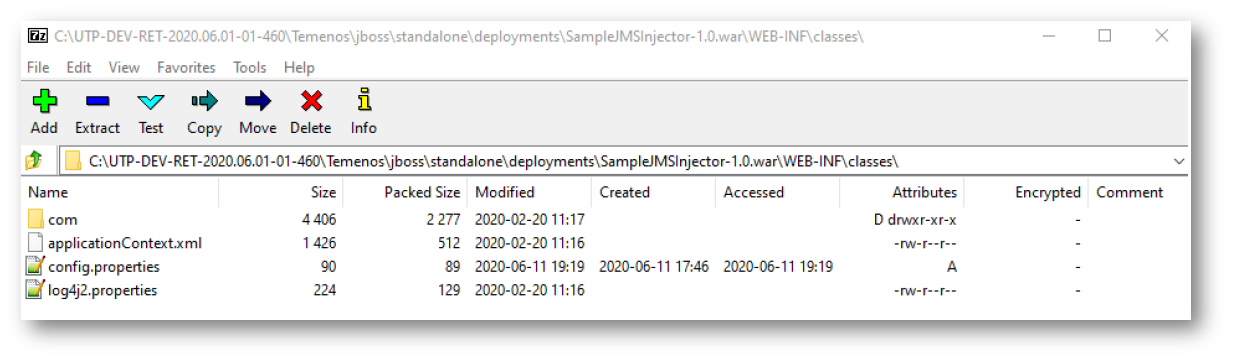

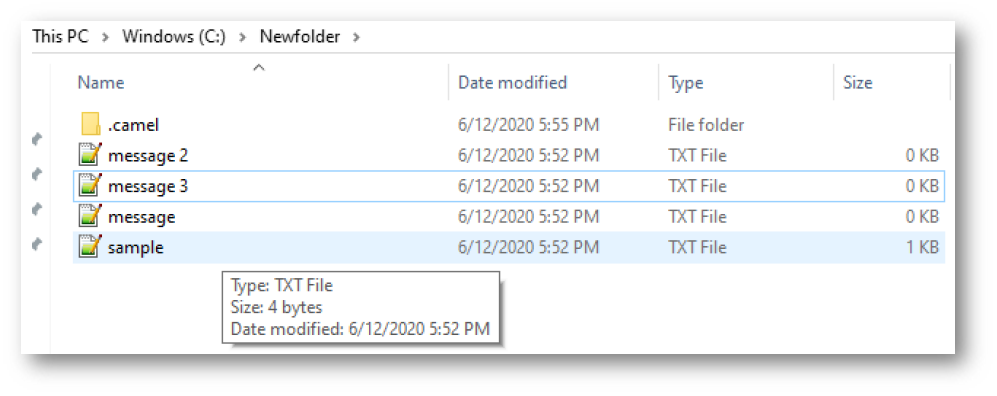

  2. The input file is picked up from a configured path. Configuration settings are made as below.
    NOTE: Here kindly mention the path, which we configured in the DFE.PARAMETER application.

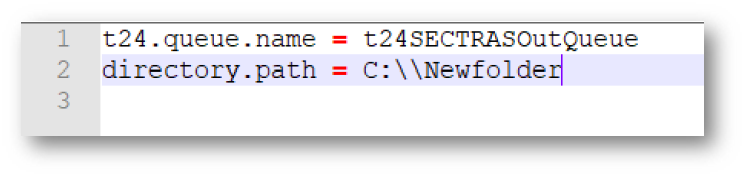

  3. Configure the queue name and the folder where the input files are placed, as depicted.

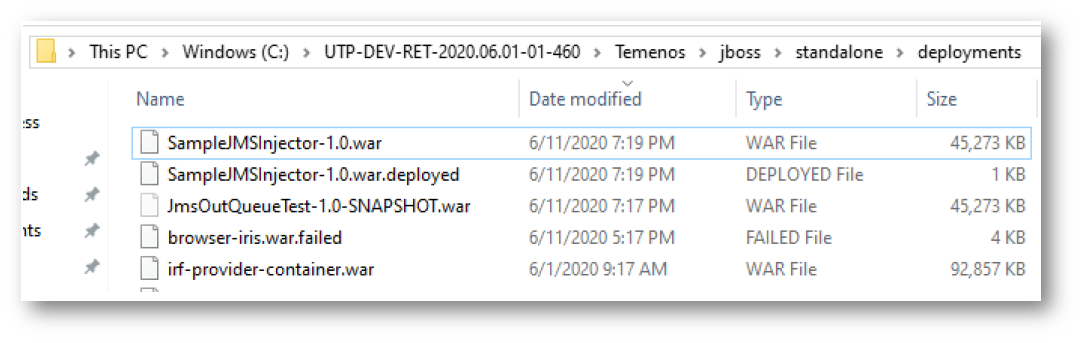

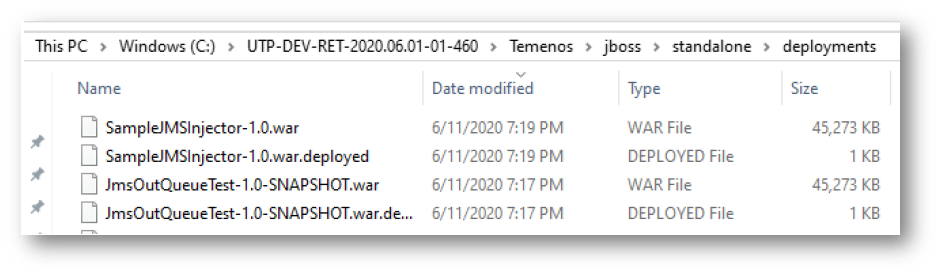

  4. Then the war file is deployed in jboss/standalone/deployments.

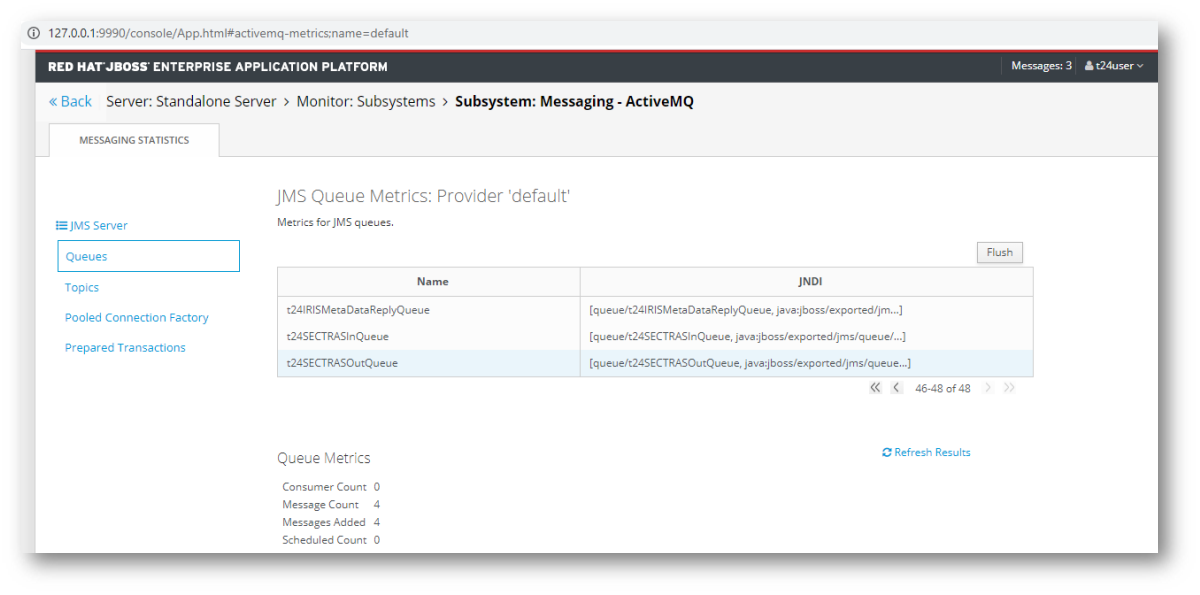

  5. Once the war is deployed the messages will be picked up from the location and added to the outward queue.

ClosedSectras Inward Queue
  1. The JmsOutQueueTest picks up messages from configured queue and places it in the specified location.

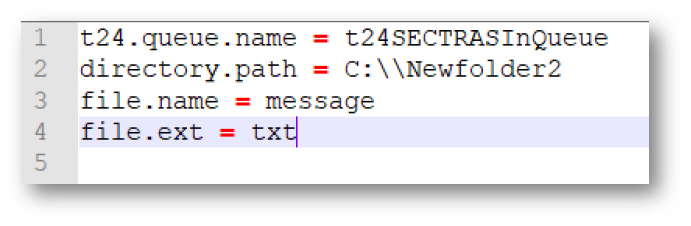

  2. The config.properties file in JmsOutQueueTest.war is configured to pick up messages from the queue and place them in the desired location.
    NOTE: Here kindly mention the path, which we configured in the DFE.PARAMETER application.

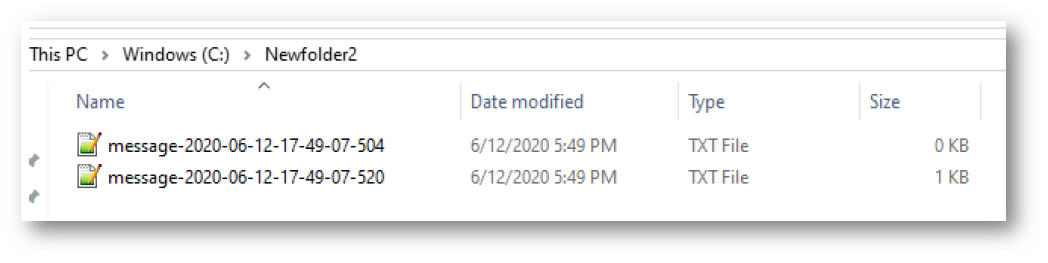

  3. Once the war is deployed, the output file is placed in mentioned path.
