Invoicing Capability (Fininvoice) Installation Guide

In this document are explained the installation procedures required to install the adapter pack for inflowing flow.

System Requirements

The following are the pre-requisites for installing the package:

• Jdk 1.8
• Temenos Transact area configured with the components

The package contains the Munifin_Invoicing_CreditNote-1.0-SNAPSHOT.zip adapter component.

General Considerations

1. Extract the .zip file.
2. In the start.cmd file, set the following details:
   • JAVA_HOME variable: points to java jdk location. E.g: C:\java\jdk8\jre
   • PROVIDER variable: contains the queue broker name. It accepts the following values: jboss, ibmmq, activemq, amazonmq, weblogic
   • PORT variable: can be any available port number to be used by the package.
   • OUTFILEPATH: path of the output file
   • XSLPATH: path of the XSLT files

   If the above values are not set, then the following values will be defaulted:

   • PROVIDER=jboss
   • OUTFILEPATH=C:\\Munifin\\Output
   • PORT=8080
   • XSLPATH=%CD%\xsl\
3. Open the respective application properties for the queue broker type and set the JNDI values. For example, if the queue broker is jboss, we need to open the application-jboss.properties and set the values.

Steps for Deploying the Package File

1. Open a command window in the extracted package location, and execute the command start.cmd.

   Syntax:

   start.cmd [ -p provider ] [ -ifp inFilePath ] [ -ofp outFilePath ] [ -iq inQueue ] [ -po port ] [ -xp xslPath ]

   EXAMPLE:

   Start.cmd –p jboss–ofp C:\Munifin –po 9999 –xp …\ Munifin_Invoicing_CreditNote-1.0-SNAPSHOT \xsl

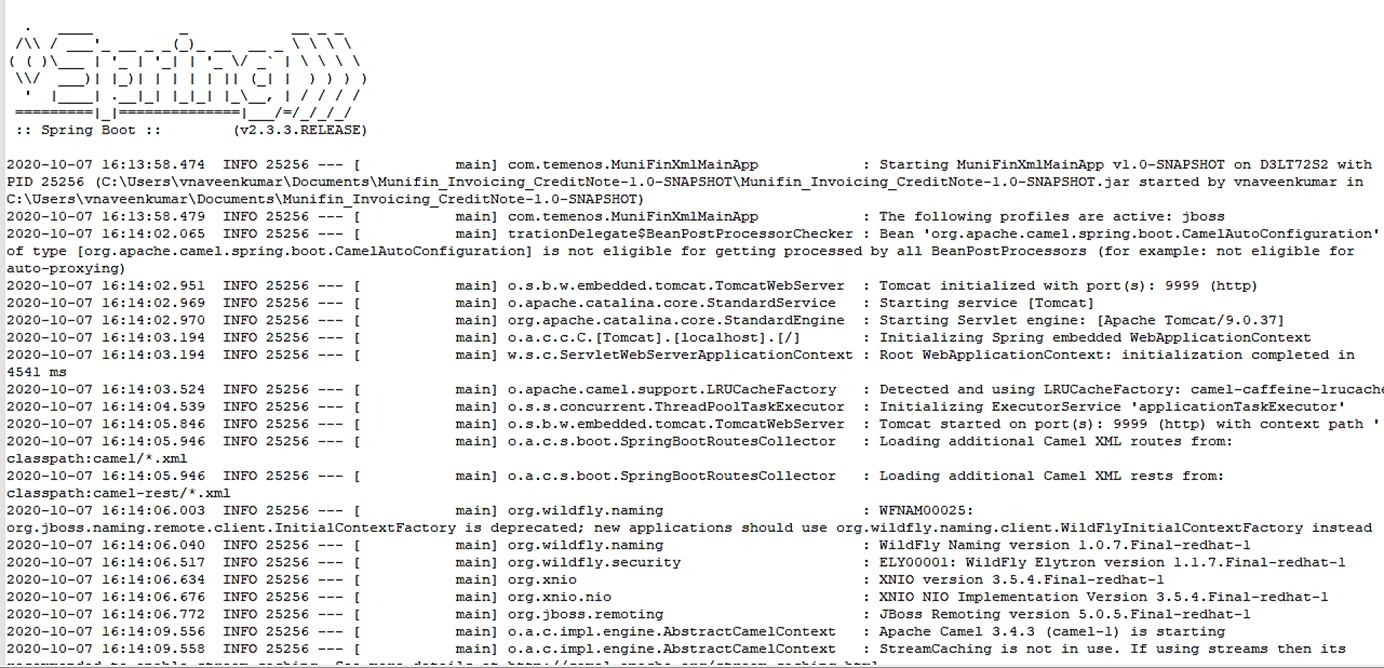

2. The logs will generated in the log folder for monitoring purpose. For example:
