Installing Microservices by Enabling Authentication and Authorisation Service

This section helps you to install the microservice in docker by enabling the authentication and authorisation Service.

Procedure:

1. Create the ENTITLEMENT_SERVICE_HOME directory.
2. Extract the ms-entitlement-package-docker-<release>.zip release bundle to the ENTITLEMENT_SERVICE_HOME directory.
3. Configure the environment variables available in entitlement.yml file as follows.

   Variable Name	Variable Value	Description
   POLICY_CALLBACK_ENABLED	true	Enabling the policy callback mechanism
   PDP_CONFIG	classpath:xacml/entitlements-pdp-callback-config.xml	Mapping the pdp-callback configuration file available in classpath
   temn.msf.security.authz.xacml.policyset.id	ALL	In-order to fetch all the XACML policy files to parse the mapped actions
   temn.config.service.base.path	http://<IP_ADDRESS>:<PORT>/ms-genericconfig-api/api/v1.0.0/	Generic-Config microservice end point base URL
   temn.config.service.resource.path	system/configurationGroups/{groupId}/configuration	Generic-Config microservice resource path to get all configurations
   EXECUTION_ENVIRONMENT	TEST	Remove this variable so that, actual API will call out

4. To communicate from the entitlement microservice to the generic-config microservice, configure the extra hosts in the yaml file of entitlement microservice.

   extra_hosts:
   "genericconfig-api:<IP_ADDRESS_OF_THE_LOCAL_MACHINE>

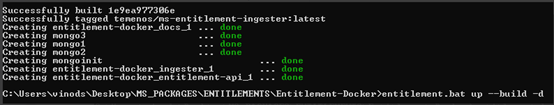

5. To make the microservice up and running, execute the following command to create images and docker container for that image.
   • Windows - entitlement.bat up --build -d
   • Linux - entitlement.sh up --build -d



6. To stop and remove the existing container, execute the following command.
   • Windows - entitlement.bat down --remove-orphans
   • Linux - entitlement.sh down --remove-orphans
